8085WE

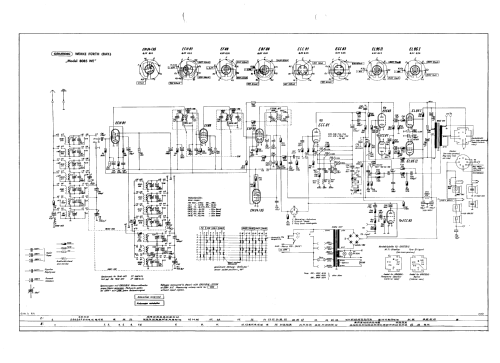

8085WE; Grundig Radio- (ID = 196472) Radio

8085WE; Grundig Radio- (ID = 603801) Radio

8085WE; Grundig Radio- (ID = 604008) Radio
8085WE; Grundig Radio- (ID = 825809) Radio
Use red slider bar for more.
8085WE; Grundig Radio- (ID = 825809) Radio
Grundig Radio-: 8085WE [Radio] ID = 825809 219x192
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8085WE, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Service manual

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECH81 EF89 EBF89 ECC81 EM34 or EM35 ECC83 EL95 EL95
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110/240 Volt
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: 8085WE - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Notes Exportgerät mit 6 Kurzwellenbereiche.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
