• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26336

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

Audio (to hear)

• Number of Tubes
• 12

• Valves / Tubes
• ECC85 ECH81 EAF801 EAF801 EM87 ECC808 ECC81 EC92 ECC83 ECC83 ELL80 ELL80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 17 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

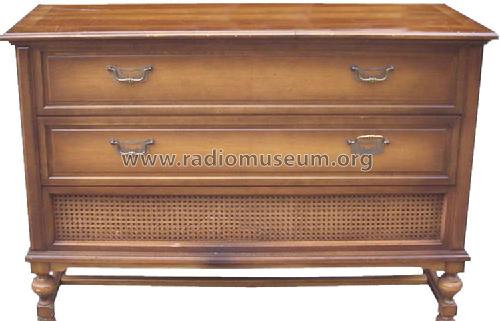

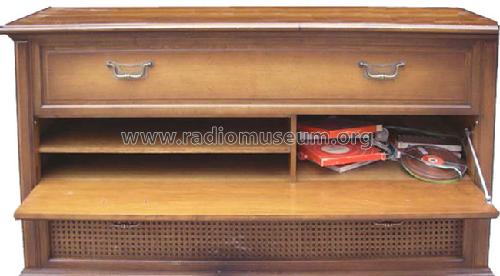

• Model: Stereo-Konzertschrank Ehrenfels Ch= HF10L + NF10 [1965] - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1270 x 910 x 420 mm / 50 x 35.8 x 16.5 inch

• Notes

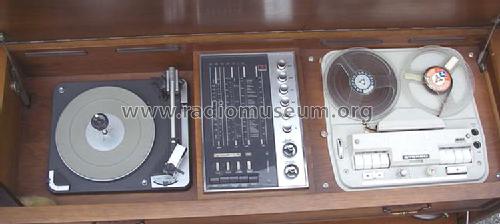

• Rundfunk-Chassis = HF10L und NF10;
  Stereo-Decoder 6 eingebaut;
  Stereo-NF-Verstärker mit 2 Endstufen je 8,5 W;
  Phono-Chassis = Dual 1011.

• Net weight (2.2 lb = 1 kg)
• 59 kg / 129 lb 15.3 oz (129.956 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966

• Literature/Schematics (1)
• -- Original-techn. papers.
