For model Electronic T7028, Grundig (Radio-Vertrieb, RVF, Radiowerke):

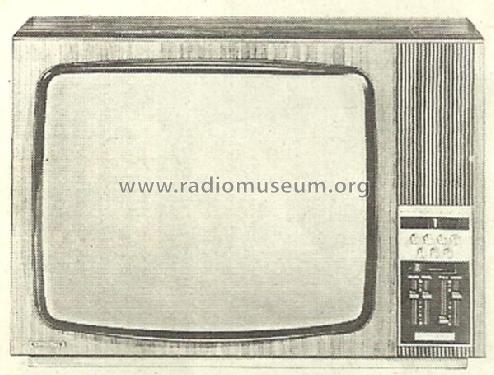

Bild aus VDRG Handbuch 1969/70 des Rundfunk- und Fernseh-Grosshandels

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969/1970 Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: PL95 PCH200 PCL805 PCF802 PL504 PY88 A61-120W
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Electronic T7028 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 725 x 490 x 390 mm / 28.5 x 19.3 x 15.4 inch
Notes

VHF-UHF-Allbereich-Tuner mit Diodenabstimmung, 9 Drucktasten, 4 Schieberegler, 7 VHF/UHF Programmtasten, Fernbedienung Type 2.

Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Literature/Schematics (1) Grundig Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
