Konzertgerät 4097

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Données
Forum
Images
Collections

  • Année
  • 1958/1959
  • Catégorie
  • Radio - ou tuner d'après la guerre 1939-45
  • Radiomuseum.org ID
  • 21687
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Cliquez sur la vignette du schéma pour le demander en tant que document gratuit.

 Spécifications techniques

  • No. de tubes
  • 7
  • Principe général
  • Super hétérodyne (en général); FI/IF 460 kHz
  • Circuits accordés
  • 6 Circuits MA (AM)     10 Circuits MF (FM)
  • Gammes d'ondes
  • PO, GO, OC et FM
  • Tension / type courant
  • Alimentation Courant Alternatif (CA) / 110; 125; 220 Volt
  • Haut-parleur
  • 3 HP
  • Matière
  • Boitier en bois
  • De Radiomuseum.org
  • Modèle: Konzertgerät 4097 - Grundig Radio-Vertrieb, RVF,
  • Forme
  • Modèle de table avec boutons poussoirs.
  • Dimensions (LHP)
  • 630 x 370 x 250 mm / 24.8 x 14.6 x 9.8 inch
  • Remarques
  • Mit Dynamik-Expander (funktioniert mit Glühlampe, 6V, 0,05 A). Spannungswahl durch Umstecken der Sicherung.
  • Poids net
  • 13.8 kg / 30 lb 6.3 oz (30.396 lb)
  • Prix de mise sur le marché
  • 398.00 DM
  • Source extérieure
  • Erb
  • Littérature
  • -- Original-techn. papers.

 Collections | Musées | Littérature

Collections

Le modèle Konzertgerät fait partie des collections des membres suivants.

 Forum

Contributions du forum pour ce modèle: Grundig Radio-: Konzertgerät 4097

Discussions: 2 | Publications: 2

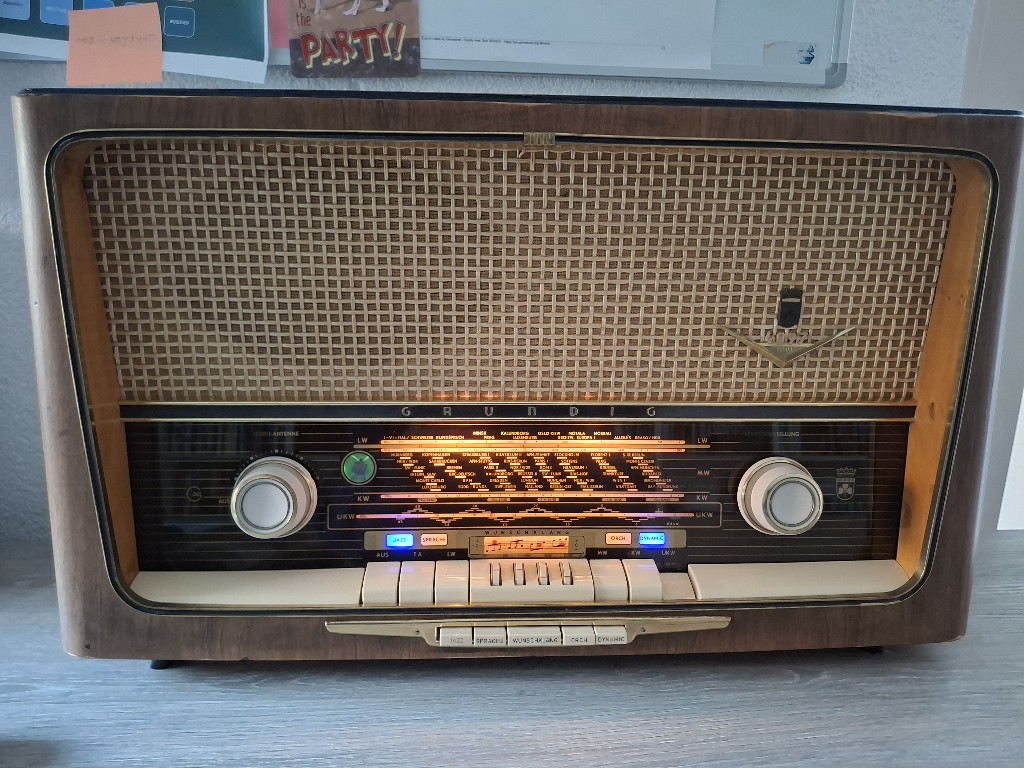

Experience 4097 restoration



  • Overall, beautiful radio. Extensive soundscaping abilities with a cute analog visualization of the soundscape, equalizer-like.

  • The radio delivers an OK sound experience, nothing dramatic, but it does the job.

  • SW/KW was very selective, to my surprise.

  • FM needed a lot of tuning

  • Experience

    • Almost all capacitors needed replacement; some were sadly deeply hidden and required disassembly to access. Lots of capacitors for the soundscaping, which meant a lot of work, but worth it. You will need to dismantle the soundscaping selector block; several capacitors are hidden behind it.

    • A mechanical selector extension extends the piano selector to the switches further back in the radio. This is a beauty, but in my case, VERY clogged with old grease, and a number of springs had left the building. Clean-up was easy, and for replacing the springs, I cut some from ballpoint pens down to fit. I also used a flexible glue to tie the springs down at both ends to hopefully prevent them from traveling on their own in the future.

    • I also needed to dismantle the volume control block to access all the capacitors. The volume control itself remained a bit shaky in spite of multiple attempts to fix.

    • Resistors all good, no replacements needed

    • There was a 6V bulb used in the amplifier circuit as a power delimitter (?); this needed replacement

    • Indicators of the selected soundscape were tiny 6V bulbs, which were hard to find new ones due to their size. Replaced with blue LED’s & resistor duos, just plugged in as a replacement into the existing sockets. Find ones that can take the raw 6V DC. This was a nice effect.

    • The soundscaping orchestration was visualized as a neat musical bar graph connected by a red line/elastic, which has since disintegrated. I replaced it with red stretch sewing thread and weaved it back and forth a couple of times. There is a red post per pot; I carefully wrapped the thread around them, and I fixed them down with a small drop of super glue.

    • As usual, make extensive notes and pictures, it is easy to get lost in this complicated radio

    • The piano key switches were very dirty and required extensive cleaning.

    • The case cleaned up nicely.
