Konzertgerät 4298 Stereo Nussbaum

Konzertgerät 4298 Stereo; Grundig Radio- (ID = 51592) Radio

Konzertgerät 4298 Stereo; Grundig Radio- (ID = 51593) Radio
Konzertgerät 4298 Stereo; Grundig Radio- (ID = 123045) Radio Konzertgerät 4298 Stereo; Grundig Radio- (ID = 123046) Radio
Konzertgerät 4298 Stereo; Grundig Radio- (ID = 123044) Radio Konzertgerät 4298 Stereo; Grundig Radio- (ID = 854601) Radio
Use red slider bar for more.

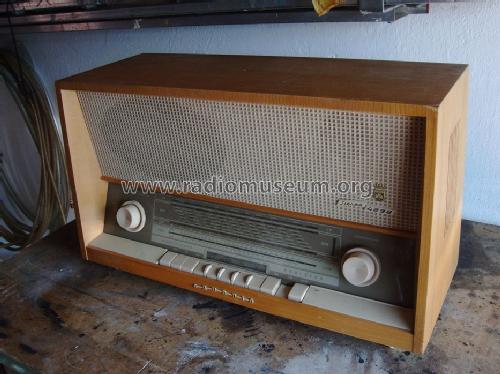

Konzertgerät 4298 Stereo; Grundig Radio- (ID = 123045) Radio
Grundig Radio-: Konzertgerät 4298 Stereo [Radio] ID = 123045 933x699

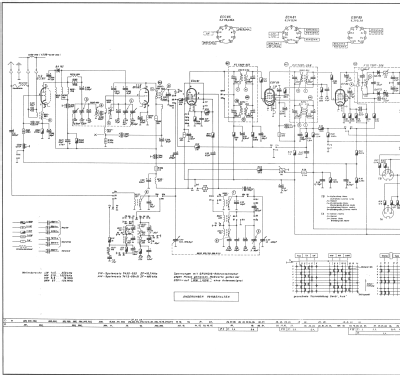

Select picture or schematic to display from thumbnails on the right and click for download.
For model Konzertgerät 4298 Stereo Nussbaum, Grundig (Radio-Vertrieb, RVF, Radiowerke):
leider Schrottgerät

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EBF89 EF80 EM84 ECC83 ELL80
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Konzertgerät 4298 Stereo [Nussbaum] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 625 x 360 x 270 mm / 24.6 x 14.2 x 10.6 inch
Notes Dioden: 2× OA172, BA102. Stereo-NF-Verstärker, 5-W-Gegentakt-Enstufe in Zweiwegetechnik.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 459.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
