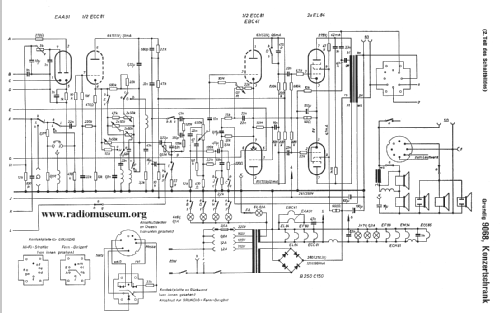

Konzertschrank 9068; Grundig Radio- (ID = 32061) Radio
Konzertschrank 9068; Grundig Radio- (ID = 1273852) Radio Konzertschrank 9068; Grundig Radio- (ID = 316086) Radio
Konzertschrank 9068; Grundig Radio- (ID = 1273854) Radio Konzertschrank 9068; Grundig Radio- (ID = 1273856) Radio
Konzertschrank 9068; Grundig Radio- (ID = 1177486) Radio Konzertschrank 9068; Grundig Radio- (ID = 1273855) Radio
Konzertschrank 9068; Grundig Radio- (ID = 1273851) Radio Konzertschrank 9068; Grundig Radio- (ID = 1274024) Radio
Konzertschrank 9068; Grundig Radio- (ID = 1274025) Radio Konzertschrank 9068; Grundig Radio- (ID = 1274026) Radio
Use red slider bar for more.

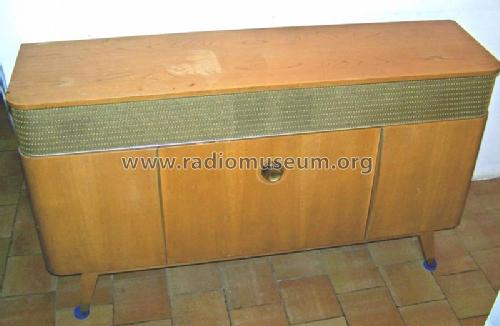

Konzertschrank 9068; Grundig Radio- (ID = 1273852) Radio
Grundig Radio-: Konzertschrank 9068 [Radio] ID = 1273852 800x523
Select picture or schematic to display from thumbnails on the right and click for download.
For model Konzertschrank 9068 dunkel, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EF80 EM34 or EM35 EAA91 EBC41 ECC81 EL84 EL84
Main principle Superheterodyne (common)
Tuned circuits 9 AM circuit(s)     15 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker 7 or more Loudspeakers
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Konzertschrank 9068 [dunkel] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1460 x 840 x 410 mm / 57.5 x 33.1 x 16.1 inch
Notes Phono-Chassis = De Luxe PE10.
2 der 7 LS befinden sich in einem separaten Raumklang-Strahler.
Net weight (2.2 lb = 1 kg) 72 kg / 158 lb 9.4 oz (158.59 lb)
Price in first year of sale 1'295.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58
