For model KS740 Ch= CS200, Grundig (Radio-Vertrieb, RVF, Radiowerke):

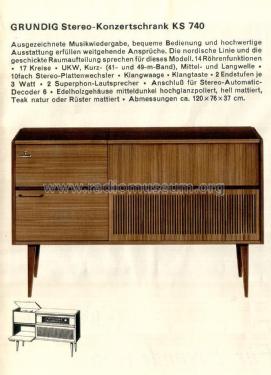

Grundig Katalog 1967 - Schaufenster - Seite 17

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EAF801 ECC83 EM87 ELL80
Main principle Super-Heterodyne (Super in general); ZF/IF 460 / 1070 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: KS740 Ch= CS200 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1200 x 760 x 370 mm / 47.2 x 29.9 x 14.6 inch
Notes

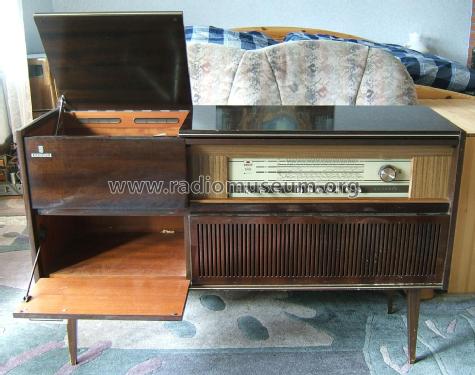

Grundig Stereo Konzertschrank Modell KS 740.
Rundfunk-Chassis = CS200
Stereo-Decoder 6 (mit ECC81, EC92) nachrüstbar.
Stereo-NF-Verstärker mit 2 Endstufen je 3 W.
Phono-Chassis = Philips AG1035
Edelholzgehäuse mitteldunkel hochglanzpoliert, hell mattiert, Teak natur oder Rüster mattiert.

Net weight (2.2 lb = 1 kg) 50 kg / 110 lb 2.1 oz (110.132 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967
Mentioned in -- Original prospect or advert (Grundig Katalog 1967 - Schaufenster - Seite 17)
Literature/Schematics (1) -- Original-techn. papers.
