• Year
  • 1961 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 234526
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 115-220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

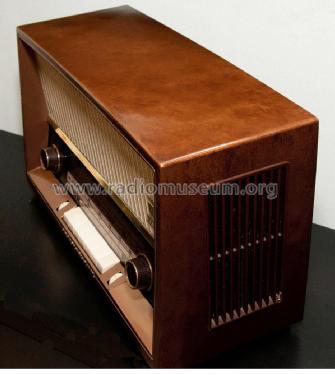

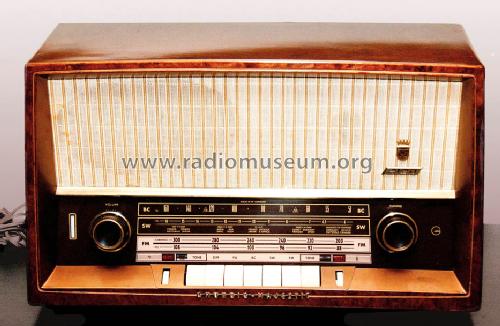

  • Model: Majestic 2120U - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 19.5 x 12 x 7.5 inch / 495 x 305 x 191 mm
  • Notes
  • Grundig Majestic 2120U is an export model for the Northamerican market.
    BC band with C-D marks indicating the frequencies for Civil Defense (Conelrad).

    See also the domestic model Musikgerät 2120.

  • Author
  • Model page created by William Strik. See "Data change" for further contributors.
