Majestic 4095USA

Grundig (Radio-Vertrieb, RVF, Radiowerke)

Data
Forum
Pictures
Collections

  • Year
  • 1956 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 98150
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

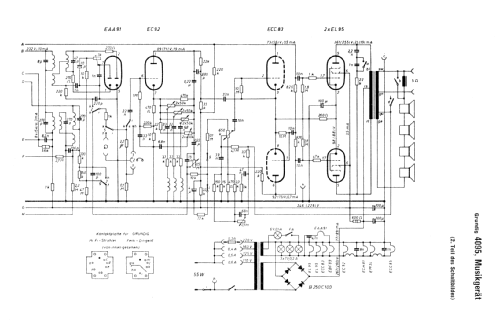

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz; Export model
  • Tuned circuits
  • 8 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Majestic 4095USA - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 680 x 330 x 360 mm / 26.8 x 13 x 14.2 inch
  • Notes

  • Connectors for Grundig Majestic Acousticon and Baton.

    See also the German domestic model Konzertgerät 4095

  • Net weight (2.2 lb = 1 kg)
  • 16.8 kg / 37 lb 0.1 oz (37.004 lb)
  • Author
  • Model page created by Georg Richter. See "Data change" for further contributors.

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Grundig Radio-: Majestic 4095USA

Threads: 2 | Posts: 7

I bought a Grundig Majestic 4095 because I've been fond of the tube sound and thought the cabinet was attractive.

This is my first radio project.

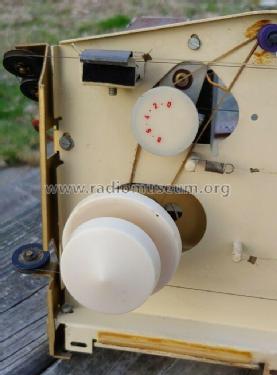

Went to clean it and the tuner wires came off the pulleys.

Would anyone know where to find a schematic for stringing these wire?

Please, if you have any guidance, it will be greatly appreciated.

Thanks,

Alan

Alan Schneider, 10.Mar.20

Weitere Posts (4) zu diesem Thema.

( Posted with kind permission of Jeff S., Boulder, Colorado, USA.
  Thank you very much, Jeff. )

I just completed my first table radio restoration and I'm psyched at how good this 50 year old is working!

Exterior was in pretty good shape, but some veneer needed to be reglued and the shellac(?) was looking a bit tired, so I lightly sanded the cabinet with #600 sandpaper and applied a light coat of linseed oil.

Set has been slightly modified to accept a new Russian magic eye:



Interior after restoration:



Underside showing new Orange Drops:

Multisection capacitor is actually just the shell of the old capacitor fitted over a new F&T chassis mount part from askjanfirst.com.

Had to enlarge the existing hole about 3mm to accomodate the stud-mounted part. Big black caps to the lower left are 4 uf and 10 uf Solen polypropylenes.

Just two electrolytic caps left in this radio!

Just some of the parts I replaced; all but one of the vacuum tubes
tested bad; fortunately I had purchased a full set of tubes from Jan
beforehand:



Original AEG selenium rectifier can restuffed with silicon rectifiers +
snubber capacitors:



I briefly thought about using all German-made caps and resistors, but
quickly decided those weren't likely to look any more "vintage" than the orange drops. Nevertheless, there's the new F&T can, plus a few
Roederstein and Electrica parts in there.

By the way, what kind of wood is this made of?

( If you have the answer please email the underassistant auxiliary poster
of Jeffs report )

Jeff in Colorado

Georg Richter, 01.Jun.06

Weitere Posts (3) zu diesem Thema.
