• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180547

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes

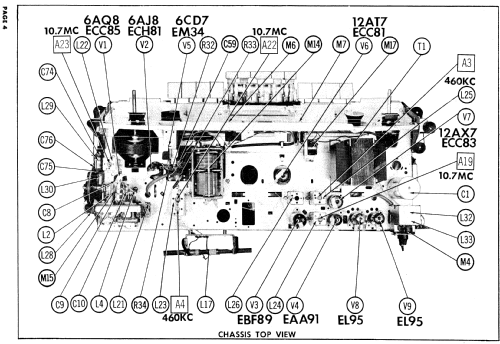

• ECC85 ECH81 EBF89 EAA91 EM34 ECC81 ECC83 EL95 EL95

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Majestic 8068 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with any shape - in general

• Notes
• Supplied by:
  Majestic International Sales Corporation, 743 West La Salle Street, Chicago 10, Illinois.

• Literature/Schematics (1)

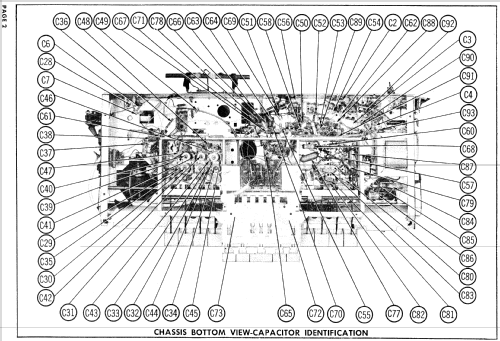

• Photofact Folder, Howard W. SAMS (Date 7-58, Set 407, Folder 11)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
