Mandello 4

Mandello 4 ; Grundig Radio- (ID = 1047402) Radio Mandello 4 ; Grundig Radio- (ID = 1047405) Radio
Mandello 4 ; Grundig Radio- (ID = 1047406) Radio Mandello 4 ; Grundig Radio- (ID = 1047404) Radio
Mandello 4 ; Grundig Radio- (ID = 1047403) Radio Mandello 4 ; Grundig Radio- (ID = 1047407) Radio
Mandello 4 ; Grundig Radio- (ID = 1047408) Radio Mandello 4 ; Grundig Radio- (ID = 1047409) Radio
Mandello 4 ; Grundig Radio- (ID = 1546766) Radio Mandello 4 ; Grundig Radio- (ID = 1546765) Radio
Use red slider bar for more.

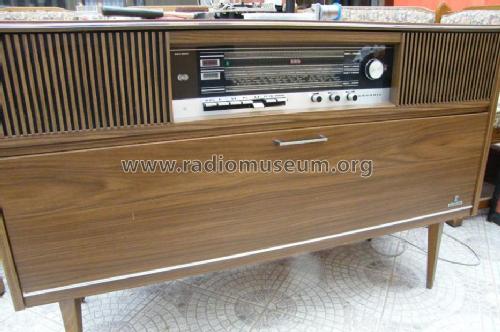

Mandello 4 ; Grundig Radio- (ID = 1047402) Radio
Grundig Radio-: Mandello 4 [Radio] ID = 1047402 933x621
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mandello 4, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21:
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Mandello 4 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1180 x 800 x 380 mm / 46.5 x 31.5 x 15 inch
Notes

Plattenwechsler: Automatic 36 (Fertigung Philips für Grundig). Stereo-Decoder eingebaut.
Siehe auch Mandello 4 WE/FM mit MW, 2x KW und UKW/FM.

Toca discos Automatic 36, 4 velocidades.

Mentioned in -- Original prospect or advert

Model page created by João-Afonso Santos. See "Data change" for further contributors.
