Mini-Boy 200

Mini-Boy 200; Grundig Radio- (ID = 797626) Radio

Mini-Boy 200; Grundig Radio- (ID = 1521080) Radio
Mini-Boy 200; Grundig Radio- (ID = 299390) Radio Mini-Boy 200; Grundig Radio- (ID = 43951) Radio
Mini-Boy 200; Grundig Radio- (ID = 43952) Radio Mini-Boy 200; Grundig Radio- (ID = 299391) Radio
Mini-Boy 200; Grundig Radio- (ID = 819297) Radio Mini-Boy 200; Grundig Radio- (ID = 819300) Radio
Mini-Boy 200; Grundig Radio- (ID = 970719) Radio Mini-Boy 200; Grundig Radio- (ID = 1178207) Radio
Mini-Boy 200; Grundig Radio- (ID = 1178208) Radio Mini-Boy 200; Grundig Radio- (ID = 1178209) Radio
Use red slider bar for more.
Mini-Boy 200; Grundig Radio- (ID = 299390) Radio
Grundig Radio-: Mini-Boy 200 [Radio] ID = 299390 679x455
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini-Boy 200, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC71 OC72 OC72 K5/2 K5/2
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.075 W (unknown quality)
from Radiomuseum.org Model: Mini-Boy 200 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 104 x 65 x 27 mm / 4.1 x 2.6 x 1.1 inch
Notes .
Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)
Price in first year of sale 99.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6043 models, 5254 with images and 4072 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: Mini-Boy 200
Threads: 1 | Posts: 1
Hits: 1885     Replies: 0
grundig: 200; Mini-Boy = Mini-Boy Transistor 200
Günther Stabe
12.Nov.08
  1

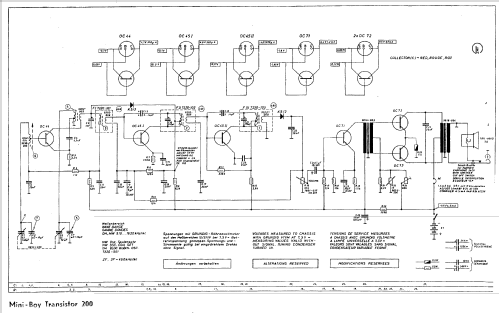

Dieses Modell ist offensichtlich baugleich / identisch mit Mini-Boy Transistor 200, ID=2123 (Schema: s. dort). In den Katalogen wurde ab 1961 wohl der Zusatz "Transistor" entfernt bzw. nicht mehr übernommen, da nunmehr alle Portables transistorbestückt waren.

G.S.
