Musikgerät 2320

Musikgerät 2320; Grundig Radio- (ID = 513390) Radio
Musikgerät 2320; Grundig Radio- (ID = 505957) Radio Musikgerät 2320; Grundig Radio- (ID = 505958) Radio
Musikgerät 2320; Grundig Radio- (ID = 505959) Radio Musikgerät 2320; Grundig Radio- (ID = 765299) Radio
Musikgerät 2320; Grundig Radio- (ID = 765300) Radio Musikgerät 2320; Grundig Radio- (ID = 998704) Radio
Musikgerät 2320; Grundig Radio- (ID = 998705) Radio Musikgerät 2320; Grundig Radio- (ID = 1097097) Radio
Musikgerät 2320; Grundig Radio- (ID = 1097098) Radio
Use red slider bar for more.
Musikgerät 2320; Grundig Radio- (ID = 505957) Radio

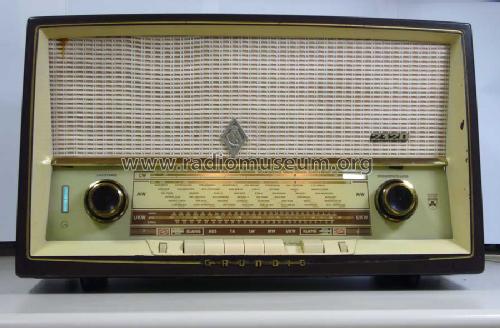

Grundig Radio-: Musikgerät 2320 [Radio] ID = 505957 900x591
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikgerät 2320, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1962–1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM87 EL84
Semiconductors (the count is only for transistors) B250C75
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Musikgerät 2320 - Grundig Radio-Vertrieb, RVF,
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 310 x 210 mm / 20.5 x 12.2 x 8.3 inch
Notes

UKW 87,5 - 104 MHz.
Siehe auch Export-Variante Grundig-Majestic 2320U.
Lautsprecher: 1 perm.-dyn., 23,9 x 15,2 cm; 1 el.-stat., 7,5 x 7,5 cm.

Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Price in first year of sale 298.00 DM
Source of data Handbuch VDRG 1962/1963
Mentioned in Handbuch VDRG 1963/1964
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Gerd Schlotterer. See "Data change" for further contributors.
