Musikgerät 2360 Nussbaum
Use red slider bar for more.

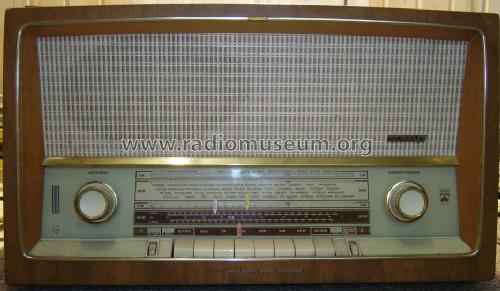

Grundig Radio-: Musikgerät 2360 [Radio] ID = 236495 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Grundig Portugal || Grundig USA / Lextronix | ||||
|---|---|---|---|---|---|
| Year: 1962/1963 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECC85 ECH81 EF89 EABC80 EM87 EL84 |
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 10 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 220 Volt |
| Loudspeaker | 3 Loudspeakers |
| Power out | 4 W (unknown quality) |
| from Radiomuseum.org | Model: Musikgerät 2360 [Nussbaum] - Grundig Radio-Vertrieb, RVF, |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 540 x 320 x 220 mm / 21.3 x 12.6 x 8.7 inch |
| Notes | |
| Net weight (2.2 lb = 1 kg) | 8.5 kg / 18 lb 11.6 oz (18.722 lb) |
| Price in first year of sale | 355.00 DM |
| External source of data | Erb |
| Source of data | Handbuch VDRG 1962/1963 |
