Musikschrank 6041W

Musikschrank 6041W; Grundig Radio- (ID = 29354) Radio Musikschrank 6041W; Grundig Radio- (ID = 1444147) Radio
Use red slider bar for more.
Musikschrank 6041W; Grundig Radio- (ID = 29354) Radio

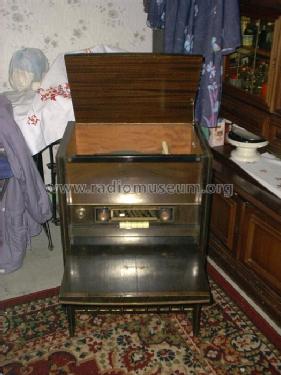

Grundig Radio-: Musikschrank 6041W [Radio] ID = 29354 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikschrank 6041W, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Michael John

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EC92 ECH81 EF93 EABC80 EM85 EL41
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: Musikschrank 6041W - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 515 x 753 x 375 mm / 20.3 x 29.6 x 14.8 inch
Notes
Net weight (2.2 lb = 1 kg) 23.5 kg / 51 lb 12.2 oz (51.762 lb)
Price in first year of sale 586.00 DM
Source of data Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 1, Ernst Erb
