Musikschrank 6050W Plattenwechsler

Musikschrank 6050W; Grundig Radio- (ID = 1010914) Radio Musikschrank 6050W; Grundig Radio- (ID = 1010915) Radio
Musikschrank 6050W; Grundig Radio- (ID = 1010916) Radio Musikschrank 6050W; Grundig Radio- (ID = 1010917) Radio
Musikschrank 6050W; Grundig Radio- (ID = 1010918) Radio
Use red slider bar for more.

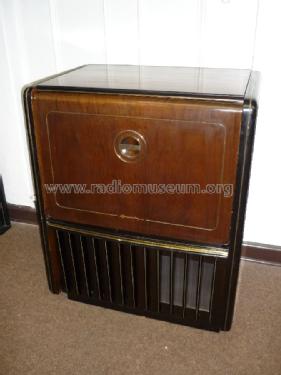

Musikschrank 6050W; Grundig Radio- (ID = 1010914) Radio
Grundig Radio-: Musikschrank 6050W [Radio] ID = 1010914 675x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikschrank 6050W Plattenwechsler, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 ECC81 ECH81 ECH81 EM35 EAF42 EABC80 EL12
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 11 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: Musikschrank 6050W [Plattenwechsler] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 690 x 870 x 460 mm / 27.2 x 34.3 x 18.1 inch
Notes Chassis 5040W, 1 elektrostatischer Hochtöner, mit Plattenwechsler
Price in first year of sale 850.00 DM
Source of data -- Original prospect or advert
Mentioned in Funk-Technik Heft 4/1954, S. 88

Model page created by Lars Brötje. See "Data change" for further contributors.
