For model Musikschrank 7050, Grundig (Radio-Vertrieb, RVF, Radiowerke):
by courtesy of the owner

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EC92 EM34 or EM35 EABC80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Musikschrank 7050 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 710 x 840 x 370 mm / 28 x 33.1 x 14.6 inch

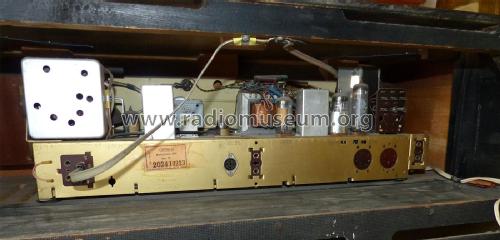

Notes Rundfunk-Chassis = 3026;
Phono-Chassis = Perpetuum-Ebner Rex A.
Net weight (2.2 lb = 1 kg) 35 kg / 77 lb 1.5 oz (77.093 lb)
Price in first year of sale 745.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
