Musikschrank 7090 mit TM5

Musikschrank 7090; Grundig Radio- (ID = 12560) Radio

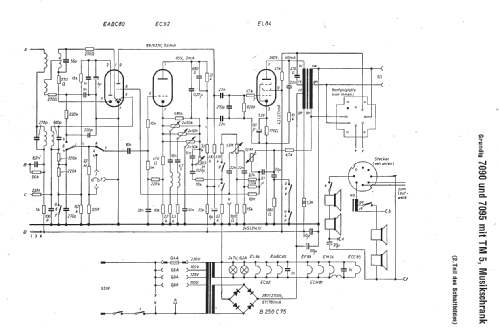

Musikschrank 7090; Grundig Radio- (ID = 12561) Radio
Musikschrank 7090; Grundig Radio- (ID = 798560) Radio
Use red slider bar for more.
Musikschrank 7090; Grundig Radio- (ID = 798560) Radio
Grundig Radio-: Musikschrank 7090 [Radio] ID = 798560 933x438
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikschrank 7090 mit TM5, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Grundig Revue 1956, Sammlung Funkhistorisches Archiv der GFGF e.V.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM34 or EM35 EC92 EL84
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Tape Recorder; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Musikschrank 7090 [mit TM5] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1090 x 880 x 390 mm / 42.9 x 34.6 x 15.4 inch
Notes Rundfunk-Chassis = 3026;
Tonband-Chassis = TM5.
Net weight (2.2 lb = 1 kg) 52 kg / 114 lb 8.6 oz (114.537 lb)
Price in first year of sale 1'125.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
