For model Musikschrank 8085, Grundig (Radio-Vertrieb, RVF, Radiowerke):

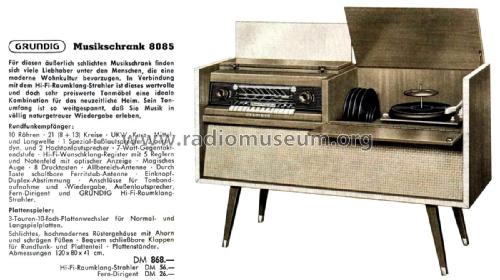

Q: Grundig, Produkt-Katalog '56

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EBF89 EAA91 EM34 or EM35 EC92 ECC83 EL95 EL95
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 8 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker 5 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: Musikschrank 8085 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1200 x 800 x 410 mm / 47.2 x 31.5 x 16.1 inch
Notes Rundfunk-Chassis = 5066;
Phono-Chassis = Perpetuum-Ebner Rex A.
Net weight (2.2 lb = 1 kg) 45.5 kg / 100 lb 3.5 oz (100.22 lb)
Price in first year of sale 868.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
