Ocean-Boy 204

Ocean-Boy 204; Grundig Radio- (ID = 81566) Radio

Ocean-Boy 204; Grundig Radio- (ID = 81567) Radio

Ocean-Boy 204; Grundig Radio- (ID = 81568) Radio

Ocean-Boy 204; Grundig Radio- (ID = 81569) Radio

Ocean-Boy 204; Grundig Radio- (ID = 81570) Radio

Ocean-Boy 204; Grundig Radio- (ID = 81571) Radio

Ocean-Boy 204; Grundig Radio- (ID = 81230) Radio

Ocean-Boy 204; Grundig Radio- (ID = 81231) Radio

Ocean-Boy 204; Grundig Radio- (ID = 81232) Radio
Ocean-Boy 204; Grundig Radio- (ID = 242701) Radio Ocean-Boy 204; Grundig Radio- (ID = 459472) Radio
Ocean-Boy 204; Grundig Radio- (ID = 242702) Radio Ocean-Boy 204; Grundig Radio- (ID = 459470) Radio
Ocean-Boy 204; Grundig Radio- (ID = 459469) Radio Ocean-Boy 204; Grundig Radio- (ID = 459471) Radio
Ocean-Boy 204; Grundig Radio- (ID = 459476) Radio Ocean-Boy 204; Grundig Radio- (ID = 111719) Radio
Ocean-Boy 204; Grundig Radio- (ID = 111720) Radio Ocean-Boy 204; Grundig Radio- (ID = 714307) Radio
Use red slider bar for more.
Ocean-Boy 204; Grundig Radio- (ID = 242701) Radio
Grundig Radio-: Ocean-Boy 204 [Radio] ID = 242701 913x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ocean-Boy 204, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 17: AF102 AF125 AF125 AF125 AF126 AF126 AF126 AF126 AC151 AC151 AC151 TF65 TF65 TF65 AC153 AC153 OC71
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 9 AM circuit(s)     15 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / D: 1 × 1,5 for dial light & 6 × 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Ocean-Boy 204 - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 345 x 215 x 110 mm / 13.6 x 8.5 x 4.3 inch
Notes

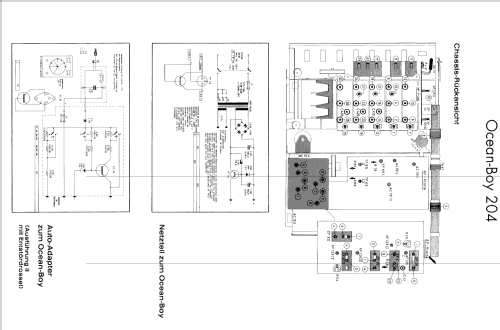

Netzbetrieb (110; 125; 220 V) mit nachträglich einsetzbarem Netzteil TN11 (49,- DM) möglich. Preis 1964/65 DM 750,-.

Siehe auch die Exportversion Transistor 17.

Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)
Price in first year of sale 595.00 DM
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch RFP 1963

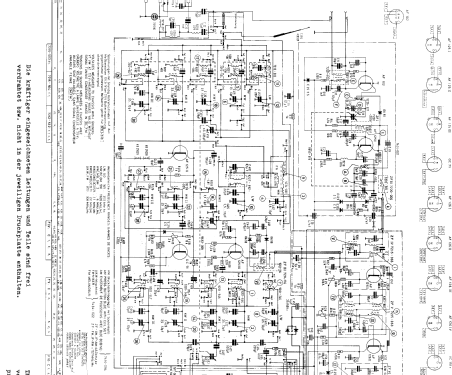

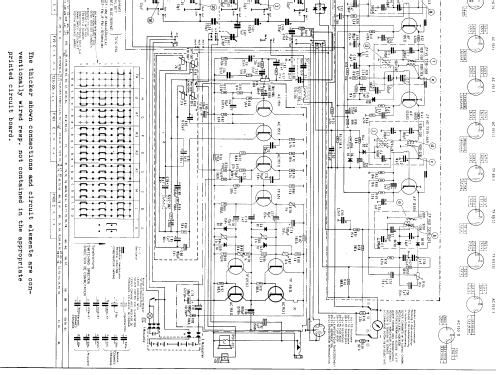

Literature/Schematics (1) Handbuch VDRG 1964/1965
Literature/Schematics (2) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
