For model Radiogram 7038 (?), Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH81 EBF89 ECC83 EC92 EM34 EL95 EL95
Main principle Superheterodyne (common); Export model

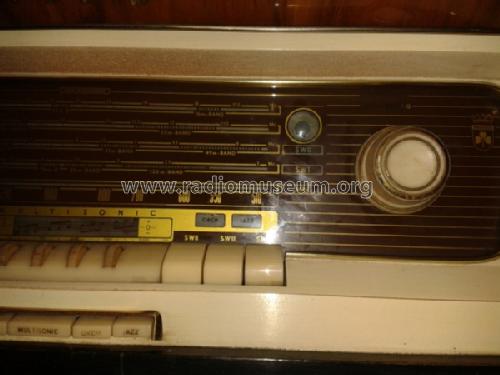

Wave bands Broadcast plus more than 2 Short Wave bands.
Details Record Player + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220; 240 Volt
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: Radiogram 7038 - Grundig Radio-Vertrieb, RVF,
Material Wooden case

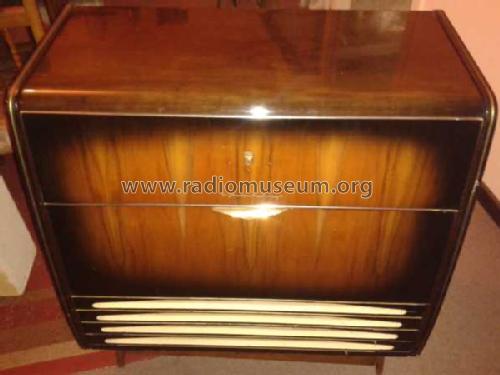

Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 800 x 800 x 400 mm / 31.5 x 31.5 x 15.7 inch
Notes

Export model with 4 x SW and MW.

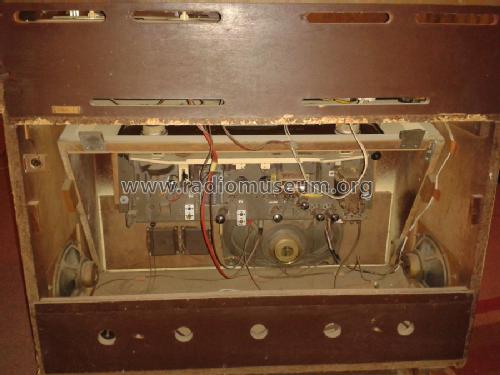

Record changer and reel-to-reel built in. 3 elliptical speakers and two electro-static tweeters.

Cabinet identical to Majestic 7038. Chassis uses the same layout, but 2 tubes less (no FM).

The model number is incomplete - we assume it is a model 7038, but it can also be one of 7033, 7035 or 7030. Further, the suffix is missing (/USA, /WE or similar). The tube line-up is not 100% certain.

Net weight (2.2 lb = 1 kg) 90 kg / 198 lb 3.8 oz (198.238 lb)

Model page created by José Bustos. See "Data change" for further contributors.
