Record de Luxe 2401

Record de Luxe 2401; Grundig Radio- (ID = 1516473) Television

Record de Luxe 2401; Grundig Radio- (ID = 1516474) Television

Record de Luxe 2401; Grundig Radio- (ID = 1516475) Television

Record de Luxe 2401; Grundig Radio- (ID = 1516476) Television

Record de Luxe 2401; Grundig Radio- (ID = 1516477) Television

Record de Luxe 2401; Grundig Radio- (ID = 1516478) Television
Use red slider bar for more.
Record de Luxe 2401; Grundig Radio- (ID = 1516473) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969/1970 Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: PL95 PCH200 PCL805 PCF802 PL504 PY88 A61-120W
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Record de Luxe 2401 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes

Allbereich-Tuner VHF und UHF, 7 Stationstasten, Fernregler Type II

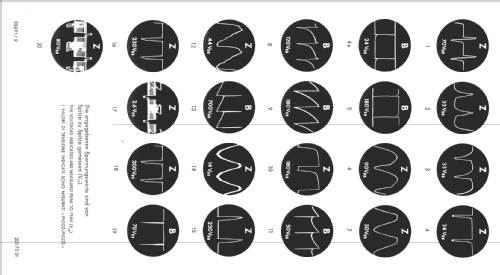

Literature/Schematics (1) Grundig Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
