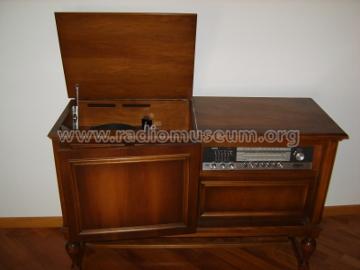

Stereo-Konzertschrank Rothenfels Ch= CS300

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1966/1967
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 26541
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     14 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo-Konzertschrank Rothenfels Ch= CS300 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1300 x 860 x 460 mm / 51.2 x 33.9 x 18.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 63 kg / 138 lb 12.3 oz (138.767 lb)
  • External source of data
  • erb
  • Mentioned in
  • -- Original-techn. papers.
