Runkfunk-Phono-Koffer PK58

Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 83565) Radio

Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 83566) Radio

Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 83568) Radio

Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 83567) Radio
Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 300254) Radio Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 300255) Radio
Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 300263) Radio Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 300256) Radio
Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 300261) Radio Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 300262) Radio
Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 300266) Radio Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 671705) Radio
Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 671706) Radio Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 671707) Radio
Use red slider bar for more.
Runkfunk-Phono-Koffer PK58; Grundig Radio- (ID = 300254) Radio
Grundig Radio-: Runkfunk-Phono-Koffer PK58 [Radio] ID = 300254 525x700

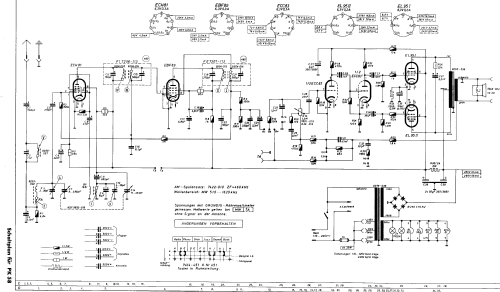

Select picture or schematic to display from thumbnails on the right and click for download.
For model Runkfunk-Phono-Koffer PK58, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF89 ECC83 EL95 EL95
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Runkfunk-Phono-Koffer PK58 - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 220 x 460 mm / 15.7 x 8.7 x 18.1 inch
Net weight (2.2 lb = 1 kg) 11.7 kg / 25 lb 12.3 oz (25.771 lb)
Price in first year of sale 398.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59
