Stereo-Konzertschrank SO245 Rüster/Teak

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1961/1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23945
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

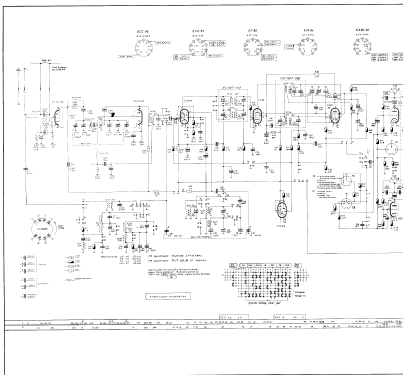

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo-Konzertschrank SO245 [Rüster/Teak] - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 850 x 830 x 390 mm / 33.5 x 32.7 x 15.4 inch
  • Notes
  • Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 7,5 W. Phono-Chassis = GW11.
    Es ist das Phonomascope Raumhallgerät mit Hammond Hallspirale eingebaut, siehe hier.
  • Net weight (2.2 lb = 1 kg)
  • 37 kg / 81 lb 8 oz (81.498 lb)
  • Price in first year of sale
  • 888.00 DM
  • External source of data
  • Erb
