• Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 24464
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 8 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

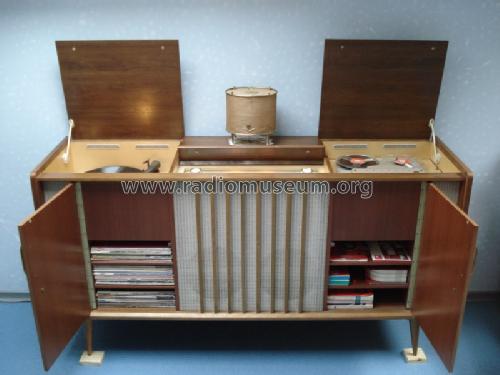

  • Model: SO390 [Rüster] - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1570 x 820 x 450 mm / 61.8 x 32.3 x 17.7 inch
  • Notes
  • Rundfunk-Chassis = 7a; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8,5 W; Raumhall-Einrichtung Phonomascope gegen Mehrpreis (135,- DM);
    Phono-Chassis = Dual 1008.
    Siehe auch das Modell SO390F als Exportmodell nach Frankreich - mit Plattenwechsler Dual 1008A.
  • Net weight (2.2 lb = 1 kg)
  • 75 kg / 165 lb 3.2 oz (165.198 lb)
  • Price in first year of sale
  • 1,595.00 DM
  • External source of data
  • Erb
