SONOCLOCK (sono-clock) 185 and 185Q

SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 658103) Radio SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 658100) Radio
SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 658104) Radio SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 658101) Radio
SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 658102) Radio SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 658188) Radio
SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 1665867) Radio SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 1665869) Radio
SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 1665870) Radio SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 1665871) Radio
Use red slider bar for more.
SONOCLOCK 185 and 185Q; Grundig Radio- (ID = 658103) Radio
Grundig Radio-: SONOCLOCK 185 and 185Q [Radio] ID = 658103 718x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model SONOCLOCK (sono-clock) 185 and 185Q, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Sammlung

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1997/1998 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Radio with other functions
Power type and voltage Alternating Current supply (AC) / Dry battery 1 x 9 & AC 230 - 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out
from Radiomuseum.org Model: SONOCLOCK 185 and 185Q - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 125 x 120 x 140 mm / 4.9 x 4.7 x 5.5 inch
Notes

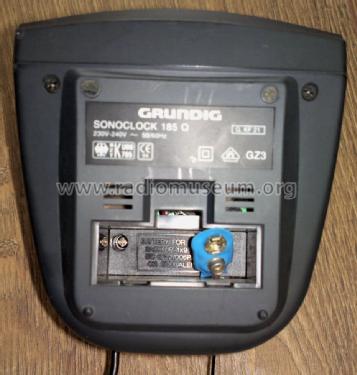

The model Grundig Sonoclock 185 is for stable 50 cycle power which holds the clock to be in the exact time. For not reliable power lines (countries), Grundig installed a quarz clock and called the model 185Q. This was introduced about 1998. According to our member Hans M. Knoll, a former Grundig designing engineer, the same happened with the models Sonoclock 21 (late), Sonoclock 22 and Sonoclock 185. We miss a schematic for the quartz clock. The 9 V battery is for the clock for cases when there is a power cut or the set is unplugged. All three models mentioned were available in "Anthrazit" (black) or White. All these models were sold in several different courntries. There is an ad for 1997/98.

Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
