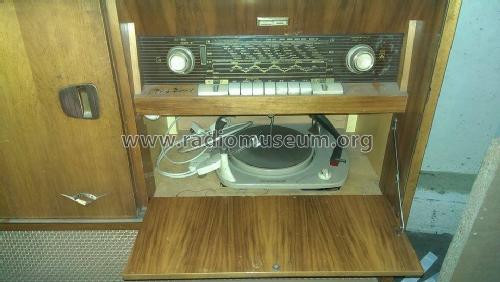

Stereo-Konzertschrank SO152 Nussbaum

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1958/1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21842
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

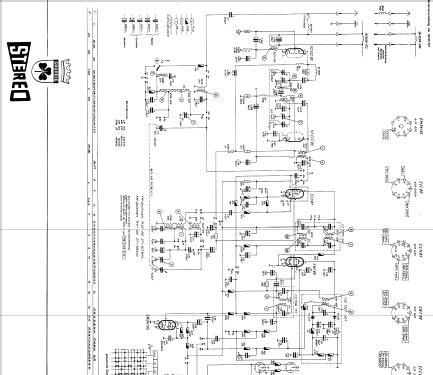

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 160; 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo-Konzertschrank SO152 [Nussbaum] - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1130 x 840 x 430 mm / 44.5 x 33.1 x 16.9 inch
  • Notes
  • Phono-Chassis = Telefunken TW501/g.
  • Price in first year of sale
  • 998.00 DM
  • External source of data
  • Erb
