For model Stereo-Konzertschrank SO181 Holz, Grundig (Radio-Vertrieb, RVF, Radiowerke):

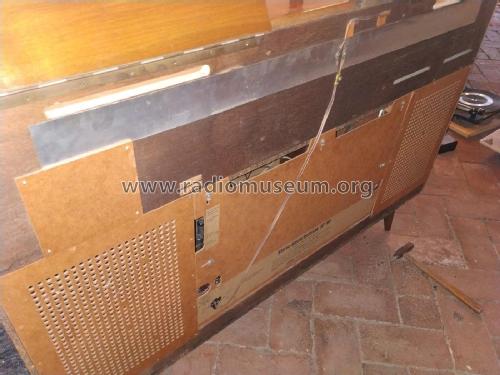

Grundig SO181 Musiktruhe, 4x EL84 Stereo, eigenes Gerät im Radiomuseum Vechta

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: ECC85 ECH81 EF89 EBF89 EM34 or EM35 ECC83 ECC83 EL84 EL84 EL84 EL84
Main principle Superheterodyne (common)
Tuned circuits 9 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker 6 Loudspeakers
Power out 30 W (undistorted)
from Radiomuseum.org Model: Stereo-Konzertschrank SO181 [Holz] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1250 x 870 x 450 mm / 49.2 x 34.3 x 17.7 inch
Notes

Dioden: 2× RL233.
Mit Endstufenmodul NF2

Price in first year of sale 1'565.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59
