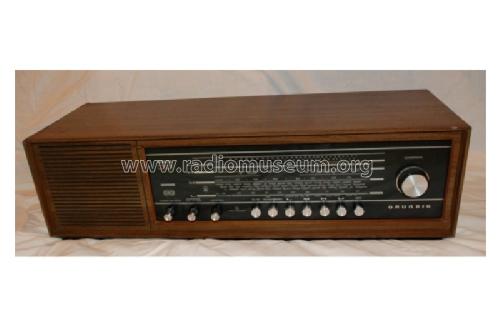

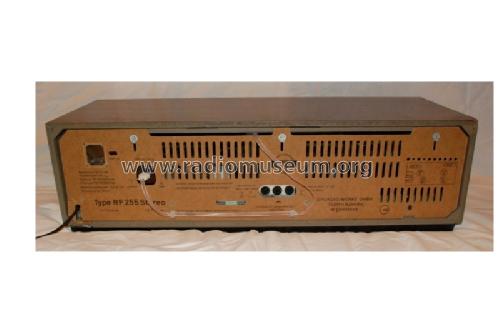

Stereo-Konzertgerät RF255 Ch= CS200

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1966 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 77360
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo-Konzertgerät RF255 Ch= CS200 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 690 x 200 x 230 mm / 27.2 x 7.9 x 9.1 inch
  • Notes
  • Grundig Stereo-Konzertgerät RF 255.
    2 x 3 Watt Endstufe
    Klangwaage, Klangtaste
    1x festeingebauter LS und 1x LS-Box (200x200x230mm)
    Edelholzgehäuse mitteldunkel hochglanzpoliert, hell mattiert oder Teak natur.


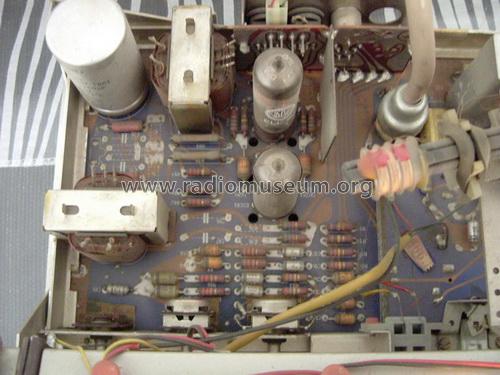

    Die Röhren EC92 und ECC81 gehören zum "Decoder 6". Der Nachfolger,
    Grundig RF265, hat 21 Transistoren statt Röhren, ist aber äusserlich gleich.

  • External source of data
  • Harald Buchholz
