• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26548

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

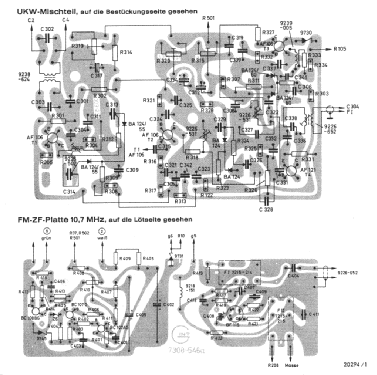

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECH81 EAF801 ECC83 ECLL800 EM87 ECLL800 ECC81 EC92

• Number of Transistors
• 8

• Semiconductors
• AF106 AF106 AF106 AF121 BF115 BC107 BC107 BC108

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Stereo-Rundfunkempfangsteil HF300 Ch= CS300 - Grundig Radio-Vertrieb, RVF,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 500 x 150 x 260 mm / 19.7 x 5.9 x 10.2 inch

• Notes
• Stereo-NF-Verstärker mit 2 Endstufen je 6 W. Dreh- und abschaltbare Ferritantenne. Diodenabstimmung mit 6 Stationstasten. Siehe auch Grundchassis CS300.

  UKW Stereo-Automatic-Decoder 6 lt. Prospekt eingebaut (möglicherweise nicht).

  Dioden: 2× AA113, 5335c, 6× BA124, Z6, 9730, 9731, 9776; 7× AA118.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original prospect or advert (Grundig Katalog 1967 - Schaufenster - Seite 20)
