TK28; Grundig Radio- (ID = 22977) R-Player
Grundig Radio-: TK28 [R-Player] ID = 22977 716x700

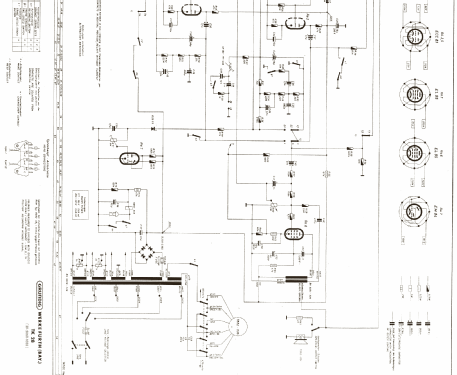

Select picture or schematic to display from thumbnails on the right and click for download.
For model TK28, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1960–1962 Category: Sound/Video Recorder and/or Player
Valves / Tubes 7: EF86 EF86 ECC81 ECC81 EM84 EL95 EL95
Main principle Audio-Amplification
Wave bands - without

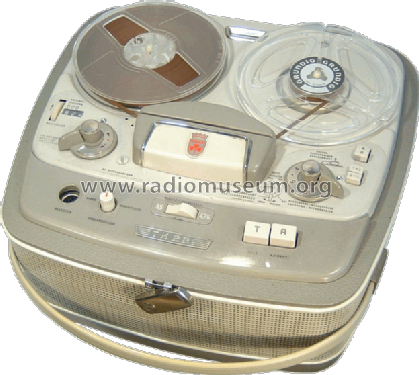

Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 117; 150; 200; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: TK28 - Grundig Radio-Vertrieb, RVF,
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 355 x 335 x 185 mm / 14 x 13.2 x 7.3 inch
Notes Vierspur-Stereo; Bandgeschwindigkeiten: 4,75/9,5 cm/s; Spulen-Ø 15 cm.
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 561.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 5992 models, 5203 with images and 4036 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Grundig Radio-: TK28
Threads: 1 | Posts: 1
Hits: 2216     Replies: 0
grundig: TK28 (TK 28); Spielt zu leise
Sven Hoffmann
30.Sep.08
  1

Hallo werte Sammler,

Ich habe ein schönes altes TK28 bekommen, das eigentlich noch gut

in Schuss ist. Nach reingen der Tonköpfe, Regler und Schalter spielt es

meines Erachtens aber viel zu leise. Gibt es hier vielleicht bekannte

Fehlerquellen, die ich auch als Laie beheben kann?

Vielen Dank in die Runde, Sven Hoffmann
