For model TK2 1963, Grundig (Radio-Vertrieb, RVF, Radiowerke):

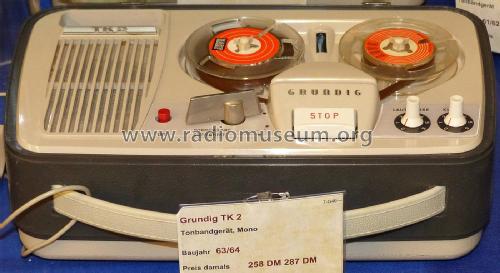

Sammlung: 'Das Rundfunkmuseum' in Cham

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1963/1964 Category: Sound/Video Recorder and/or Player
Valves / Tubes 1: DM71
Semiconductors (the count is only for transistors) 7:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Dry Batteries / 4×1,5 & 2×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: TK2 [1963] - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 115 x 175 mm / 11.8 x 4.5 x 6.9 inch
Notes Transistoren: 2× OC72, 3× TF65, OC74, OC602spez.; Dioden: 2× OA70.
Zweispur; Bandgeschwindigkeit: 9,5 cm/s.; Spulen-Ø 8 cm. Betrieb aus 6-V-Autobatterie über Verbindungskabel 255; Netzbetrieb (110/220 V) mit Netzanschlussteil möglich.
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Price in first year of sale 287.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
