TK8/3D

TK8/3D; Grundig Radio- (ID = 88705) R-Player

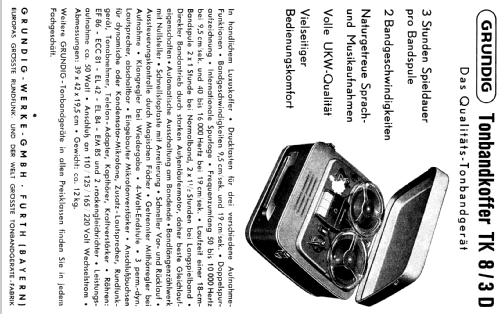

TK8/3D; Grundig Radio- (ID = 743362) R-Player

TK8/3D; Grundig Radio- (ID = 1416256) R-Player
TK8/3D; Grundig Radio- (ID = 154739) R-Player TK8/3D; Grundig Radio- (ID = 154740) R-Player

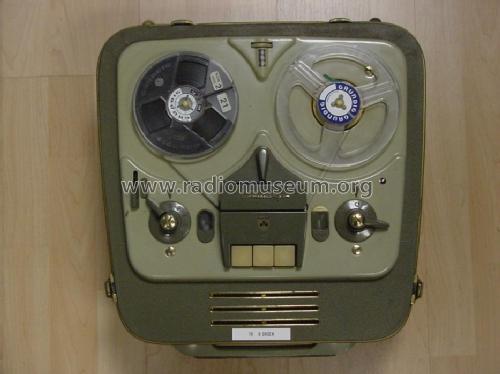

TK8/3D; Grundig Radio- (ID = 54463) R-Player TK8/3D; Grundig Radio- (ID = 54464) R-Player
TK8/3D; Grundig Radio- (ID = 154741) R-Player
Use red slider bar for more.
TK8/3D; Grundig Radio- (ID = 154739) R-Player
Grundig Radio-: TK8/3D [R-Player] ID = 154739 600x526
Select picture or schematic to display from thumbnails on the right and click for download.
For model TK8/3D, Grundig (Radio-Vertrieb, RVF, Radiowerke):
aus Ebay Verk. 321-verkaufsagentur Nr. 7559552342

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1956/1957 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 ECC81 EL42 EL84 EM85
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 117; 150; 200; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: TK8/3D - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 200 x 400 mm / 16.5 x 7.9 x 15.7 inch
Notes Zweispur; 9,5/19 cm/s.; Spulen-Ø 18 cm.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 658.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
