Verdi Ch= CS300

Verdi Ch= CS300; Grundig Radio- (ID = 62655) Radio

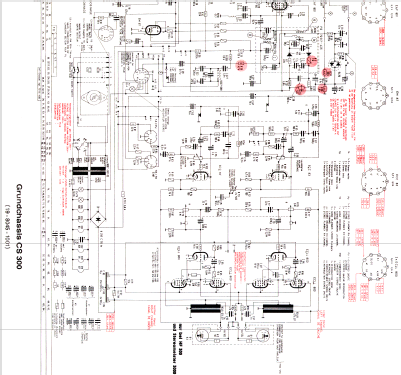

Verdi Ch= CS300; Grundig Radio- (ID = 62698) Radio

Verdi Ch= CS300; Grundig Radio- (ID = 62475) Radio

Verdi Ch= CS300; Grundig Radio- (ID = 62476) Radio

Verdi Ch= CS300; Grundig Radio- (ID = 62477) Radio

Verdi Ch= CS300; Grundig Radio- (ID = 62478) Radio

Verdi Ch= CS300; Grundig Radio- (ID = 375008) Radio
Verdi Ch= CS300; Grundig Radio- (ID = 158608) Radio Verdi Ch= CS300; Grundig Radio- (ID = 158607) Radio
Verdi Ch= CS300; Grundig Radio- (ID = 308692) Radio Verdi Ch= CS300; Grundig Radio- (ID = 158609) Radio
Verdi Ch= CS300; Grundig Radio- (ID = 158610) Radio Verdi Ch= CS300; Grundig Radio- (ID = 307311) Radio
Verdi Ch= CS300; Grundig Radio- (ID = 308693) Radio Verdi Ch= CS300; Grundig Radio- (ID = 308695) Radio
Verdi Ch= CS300; Grundig Radio- (ID = 308697) Radio Verdi Ch= CS300; Grundig Radio- (ID = 308699) Radio
Use red slider bar for more.
Verdi Ch= CS300; Grundig Radio- (ID = 158608) Radio
Grundig Radio-: Verdi Ch= CS300 [Radio] ID = 158608 731x673
Select picture or schematic to display from thumbnails on the right and click for download.
For model Verdi Ch= CS300, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECH81 EAF801 ECC83 ECLL800 EM87 ECLL800 ECC81 EC92
Semiconductors (the count is only for transistors) 8: AF106 AF106 AF106 AF121 BF115 BC107 BC107 BC108
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker 6 Loudspeakers
Power out
from Radiomuseum.org Model: Verdi Ch= CS300 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 840 x 820 x 370 mm / 33.1 x 32.3 x 14.6 inch
Notes Stereo-NF-Verstärker mit 2 Endstufen je 6 W.

Rundfunk-Chassis = Grundchassis CS300 bzw. HF300
UKW Stereo-Automatic-Decoder 6 eingebaut.
Phono-Chassis = Philips AG1035.

Dioden: 2× AA113, 5335c, 6× BA124, Z6, 9730, 9731, 9776; 7× AA118.
Net weight (2.2 lb = 1 kg) 44 kg / 96 lb 14.7 oz (96.916 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967
Mentioned in -- Original-techn. papers.
