Zauberspiegel 53T50

Zauberspiegel 53T50; Grundig Radio- (ID = 339314) Television

Zauberspiegel 53T50; Grundig Radio- (ID = 339315) Television

Zauberspiegel 53T50; Grundig Radio- (ID = 339325) Television

Zauberspiegel 53T50; Grundig Radio- (ID = 339326) Television

Zauberspiegel 53T50; Grundig Radio- (ID = 339328) Television

Zauberspiegel 53T50; Grundig Radio- (ID = 339336) Television

Zauberspiegel 53T50; Grundig Radio- (ID = 339397) Television

Zauberspiegel 53T50; Grundig Radio- (ID = 340101) Television

Zauberspiegel 53T50; Grundig Radio- (ID = 340102) Television

Zauberspiegel 53T50; Grundig Radio- (ID = 340103) Television
Zauberspiegel 53T50; Grundig Radio- (ID = 1506634) Television Zauberspiegel 53T50; Grundig Radio- (ID = 339787) Television
Zauberspiegel 53T50; Grundig Radio- (ID = 339324) Television Zauberspiegel 53T50; Grundig Radio- (ID = 253958) Television
Zauberspiegel 53T50; Grundig Radio- (ID = 431768) Television Zauberspiegel 53T50; Grundig Radio- (ID = 435190) Television
Zauberspiegel 53T50; Grundig Radio- (ID = 435191) Television Zauberspiegel 53T50; Grundig Radio- (ID = 435192) Television

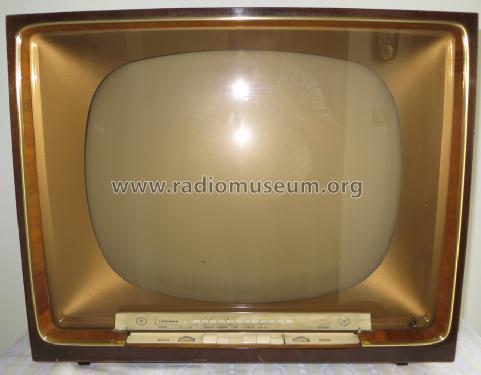

Zauberspiegel 53T50; Grundig Radio- (ID = 1506637) Television Zauberspiegel 53T50; Grundig Radio- (ID = 1506638) Television
Use red slider bar for more.
Zauberspiegel 53T50; Grundig Radio- (ID = 1506634) Television
Grundig Radio-: Zauberspiegel 53T50 [Television] ID = 1506634 933x772
Select picture or schematic to display from thumbnails on the right and click for download.
For model Zauberspiegel 53T50, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Weltspiegel2059D

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1960/1961 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC88 PCF80 EF183 EF183 EF184 PL83 EF80 EF80 EBF89 EF80 PABC80 PL84 ECL80 ECC81 PCL82 EAA91 ECH81 PL36 PY88 DY86 AW53-88
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Zauberspiegel 53T50 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 620 x 510 x 340 mm / 24.4 x 20.1 x 13.4 inch
Notes VHF, UHF gegen Mehrpreis (92,- DM), dann 23 Röhren. UHF-Tuner mit 2x PC86
Net weight (2.2 lb = 1 kg) 35 kg / 77 lb 1.5 oz (77.093 lb)
Price in first year of sale 958.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1960/61

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
