• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1957/1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99565

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• PCC88 PCF80 EF80 EF80 EF80 EF80 EBF80 EF80 PABC80 PL84 PL83 ECL80 EC92 PCL82 EC92 PL36 PY83 DY86 MW61-80

• Number of Transistors

• Semiconductors
• OA160 OA160 OA161 E62,5C5 E62,5C5 E220C300

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4.5 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

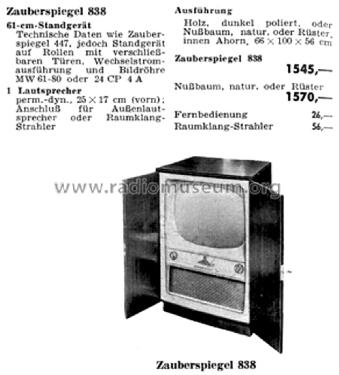

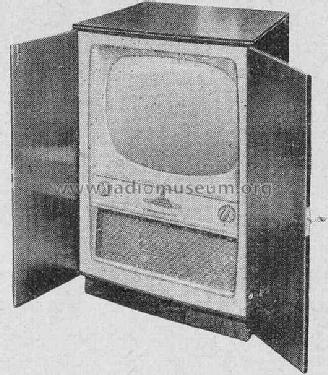

• Model: Zauberspiegel 838 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 660 x 1000 x 560 mm / 26 x 39.4 x 22 inch

• Notes

• Wellenbereiche Band I & III.

  Anschluss für Zusatzlautsprecher, Raumklang-Strahler und Fernregler.

• Price in first year of sale
• 1,545.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Mentioned in
• - - Manufacturers Literature (Grundig Revue '57)

• Literature/Schematics (1)
• Lange, Schaltungen der Funkindustrie

• Literature/Schematics (2)
• -- Original-techn. papers.
