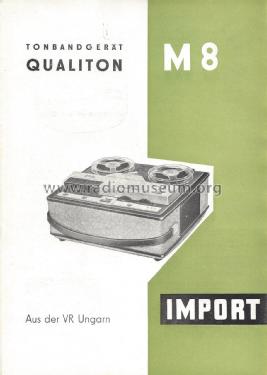

Qualiton M8; Budapesti (ID = 1586237) R-Player Qualiton M8; Budapesti (ID = 1764124) R-Player
Qualiton M8; Budapesti (ID = 1764125) R-Player Qualiton M8; Budapesti (ID = 1764126) R-Player
Use red slider bar for more.
Qualiton M8; Budapesti (ID = 2388686) R-Player
Budapesti: Qualiton M8 [R-Player] ID = 2388686 1232x1200
Select picture or schematic to display from thumbnails on the right and click for download.
For model Qualiton M8, Budapesti Rádiótechnikai Gyár (BRG)

Country:  Hungary
Manufacturer / Brand:  Budapesti Rádiótechnikai Gyár (BRG)
Year: 1965–1968 Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: EF86 ECC85 EL84 EM80
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Qualiton M8 - Budapesti Rádiótechnikai Gyár
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 355 x 165 x 325 mm / 14 x 6.5 x 12.8 inch
Notes 1/2-Spur-Tonbandgerät; 18-cm-Spulen; Bandgeschwindigkeiten: 9,53/4,76/2,38 cm/s; bei 9,53 cm/s Frequenzgang 60...12000 Hz. Aussteuerungskontrolle durch magischen Fächer. Export in DDR. Export name: Qualiton, standard name: Calypso.
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Price in first year of sale 4'250.00 HUF
Source of data -- Original prospect or advert
Mentioned in Magnetofony 1, 1956-1970, Bozdech J. (Die Geschichte der Fonoindustrie der DDR (B.4))
Literature/Schematics (1) Radio es Televizio Vevö keszülekek 1964-66

Model page created by Wolfgang Lill. See "Data change" for further contributors.
