- Country
- Germany
- Manufacturer / Brand
- Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2297
Q: Hagenuk, Radiowerbung 1938
Q: Hagenuk, Produkt-Katalog 1938
Q: Handbuch RF-Großhandel 1938

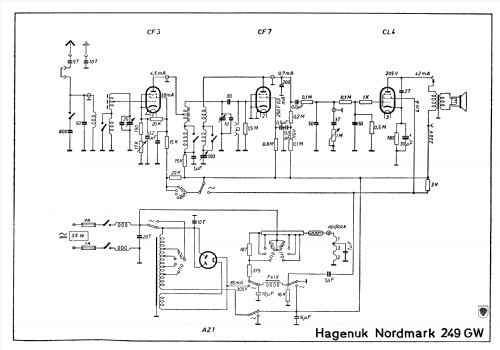

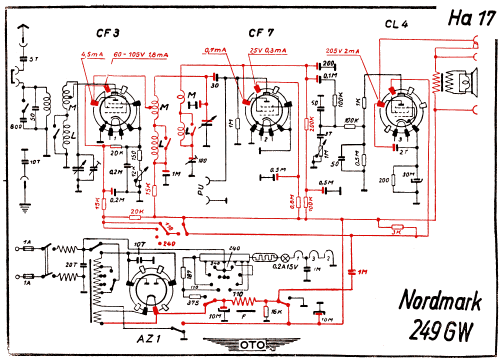

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 1 Special; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Nordmark 249GW - Hagenuk N&K, Hanseatische App.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 494 x 368 x 245 mm / 19.4 x 14.5 x 9.6 inch
- Notes
- Sch=Blaupunkt 4GW28
Einsteckmöglichkeit für Spezial-Sperrkreis.
Grosse Schrägskala, Tonabnehmeranschluss, Klangfarbenregler.
Anschluss für zweiten abschaltbaren Lautsprecher.
Gehäuseausführung Nussbaum hochglanzpoliert.
- Price in first year of sale
- 195.00 RM
- Source of data
- Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Mentioned in
- -- Original prospect or advert
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
