Nordmark 659W

Nordmark 659W; Hagenuk N&K, (ID = 4640) Radio

Nordmark 659W; Hagenuk N&K, (ID = 320220) Radio

Nordmark 659W; Hagenuk N&K, (ID = 608785) Radio

Nordmark 659W; Hagenuk N&K, (ID = 1815365) Radio

Nordmark 659W; Hagenuk N&K, (ID = 1815366) Radio

Nordmark 659W; Hagenuk N&K, (ID = 2271924) Radio

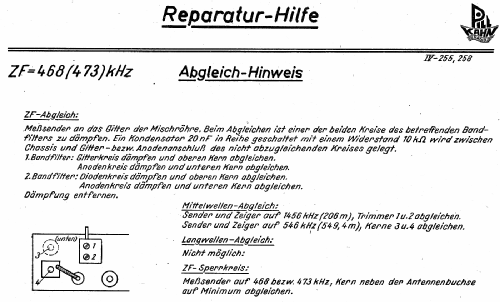

Nordmark 659W; Hagenuk N&K, (ID = 2271925) Radio
Nordmark 659W; Hagenuk N&K, (ID = 234105) Radio Nordmark 659W; Hagenuk N&K, (ID = 234106) Radio
Nordmark 659W; Hagenuk N&K, (ID = 234107) Radio Nordmark 659W; Hagenuk N&K, (ID = 707863) Radio
Nordmark 659W; Hagenuk N&K, (ID = 234108) Radio Nordmark 659W; Hagenuk N&K, (ID = 764080) Radio
Nordmark 659W; Hagenuk N&K, (ID = 1112455) Radio Nordmark 659W; Hagenuk N&K, (ID = 1112456) Radio
Nordmark 659W; Hagenuk N&K, (ID = 1112457) Radio Nordmark 659W; Hagenuk N&K, (ID = 1112458) Radio
Use red slider bar for more.
Nordmark 659W; Hagenuk N&K, (ID = 234105) Radio

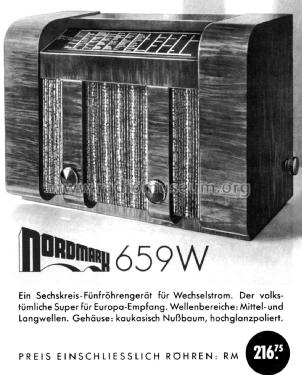

Hagenuk N&K,: Nordmark 659W [Radio] ID = 234105 900x548
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nordmark 659W, Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark:
Ebay Nr. 180005547371 Bild bearbeitet.

Country:  Germany
Manufacturer / Brand:  Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Nordmark 659W - Hagenuk N&K, Hanseatische App.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 523 x 370 x 245 mm / 20.6 x 14.6 x 9.6 inch
Notes Sch=Blaupunkt 4W67 ,Pultskala, Skalenbereich durchgehend von 200m bis 1900m (MW und LW), Bereichsumschaltung erfolgt automatisch durch 3 Kontakte am Drehkondensator. Kapazitive ZF- Bandbreitenumschaltung (3,3kHz/9kHz) am 1. ZF Bandfilter. Chassisplatte aus 10mm dicker Presspappe.
Net weight (2.2 lb = 1 kg) 12.7 kg / 27 lb 15.6 oz (27.974 lb)
Price in first year of sale 217.00 RM
Collectors' prices
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
Here you find 169 models, 132 with images and 69 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
