Nordmark 758W

Nordmark 758W; Hagenuk N&K, (ID = 83033) Radio

Nordmark 758W; Hagenuk N&K, (ID = 83034) Radio

Nordmark 758W; Hagenuk N&K, (ID = 83035) Radio

Nordmark 758W; Hagenuk N&K, (ID = 4638) Radio

Nordmark 758W; Hagenuk N&K, (ID = 320222) Radio

Nordmark 758W; Hagenuk N&K, (ID = 1815372) Radio

Nordmark 758W; Hagenuk N&K, (ID = 1815393) Radio

Nordmark 758W; Hagenuk N&K, (ID = 2268080) Radio

Nordmark 758W; Hagenuk N&K, (ID = 2268082) Radio

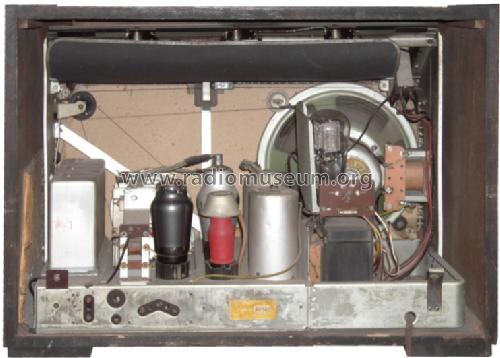

Nordmark 758W; Hagenuk N&K, (ID = 456501) Radio Nordmark 758W; Hagenuk N&K, (ID = 456502) Radio
Nordmark 758W; Hagenuk N&K, (ID = 456503) Radio Nordmark 758W; Hagenuk N&K, (ID = 59067) Radio
Nordmark 758W; Hagenuk N&K, (ID = 59068) Radio Nordmark 758W; Hagenuk N&K, (ID = 59069) Radio
Nordmark 758W; Hagenuk N&K, (ID = 456504) Radio
Use red slider bar for more.
Nordmark 758W; Hagenuk N&K, (ID = 456501) Radio
Hagenuk N&K,: Nordmark 758W [Radio] ID = 456501 726x537
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nordmark 758W, Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark

Country:  Germany
Manufacturer / Brand:  Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF3 ACH1 AF3 ABC1 AL4 AZ1
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Nordmark 758W - Hagenuk N&K, Hanseatische App.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 535 x 380 x 310 mm / 21.1 x 15 x 12.2 inch
Notes Sch=Blaupunkt 5W77; Feldstärke-Anzeige.
Price in first year of sale 338.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
