ASK51; HEA; Wien (ID = 9078) Car Radio
ASK51; HEA; Wien (ID = 446420) Car Radio ASK51; HEA; Wien (ID = 336250) Car Radio
ASK51; HEA; Wien (ID = 36752) Car Radio ASK51; HEA; Wien (ID = 446421) Car Radio

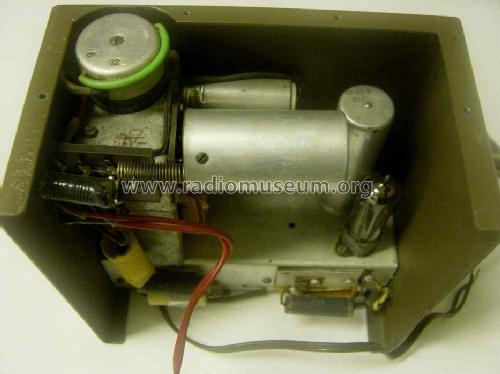

ASK51; HEA; Wien (ID = 292842) Car Radio ASK51; HEA; Wien (ID = 292843) Car Radio
ASK51; HEA; Wien (ID = 292840) Car Radio ASK51; HEA; Wien (ID = 292841) Car Radio
ASK51; HEA; Wien (ID = 292844) Car Radio ASK51; HEA; Wien (ID = 336251) Car Radio
Use red slider bar for more.
ASK51; HEA; Wien (ID = 446420) Car Radio
HEA; Wien: ASK51 [Car Radio] ID = 446420 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model ASK51, HEA; Wien:

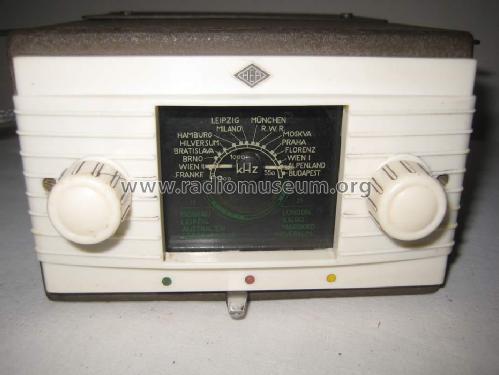

Hea ASK51 (mit orig. Knöpfe)

Country:  Austria
Manufacturer / Brand:  HEA; Wien
Year: 1951 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: EF80 ECH42 EAF42 EAF42 EL41 EZ40
Semiconductors (the count is only for transistors) Zerhacker
Main principle Superhet with RF-stage; ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: ASK51 - HEA; Wien
Material Metal case
Shape Chassis only or for «building in»
Notes

HEA Autoradio ASK51.
Zweiteiliges Autoradio: Empfangsteil 130x84x182 mm, 2,1 kg;
Zerhackerteil 182x188x106 mm, 3,9 kg.  Gesamtgewicht = 6,00 Kg.
± Masse umschaltbar.

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 2,530.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

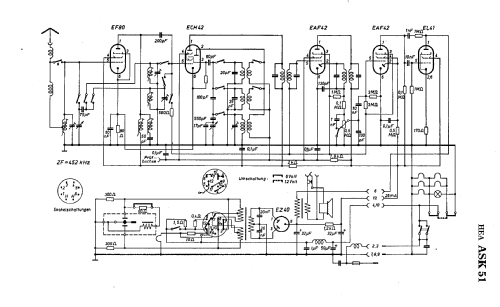

Circuit diagram reference Lange-Nowisch
