Transistor 7 700T

Transistor 7 700T; Healing, A.G., Ltd.; (ID = 2058968) Radio
Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1196252) Radio Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1196253) Radio
Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1196254) Radio Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1196255) Radio
Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1196256) Radio Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1765880) Radio
Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1765881) Radio Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1765882) Radio
Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1765883) Radio Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1765884) Radio
Use red slider bar for more.
Transistor 7 700T; Healing, A.G., Ltd.; (ID = 1196252) Radio
Healing, A.G., Ltd.;: Transistor 7 700T [Radio] ID = 1196252 933x883
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor 7 700T, Healing, A.G., Ltd.; Melbourne:
Shop Etsy 86580629

Country:  Australia
Manufacturer / Brand:  Healing, A.G., Ltd.; Melbourne
Year: 1959–1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N219 2N218 2N218 2N408 or. 2N217 2N408 or. 2N217 2N270 2N270
Main principle Superheterodyne (common); 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 X 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Transistor 7 700T - Healing, A.G., Ltd.; Melbourne
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 140 x 90 mm / 8.7 x 5.5 x 3.5 inch
Notes

Chassis construction, no PCB.

  • Speaker Rola Type 4C.
  • Battery Eveready Type 276P.
  • Case in Hogskin Red or London Tan.
Price in first year of sale 42.00 AUS £
Mentioned in August 1959

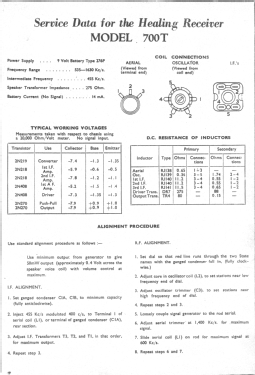

Literature/Schematics (1) - - Manufacturers Literature (Healing Service Data Manual, Pages 362 & 363.)
Literature/Schematics (2) J.R. Publications Television Service Handbook (Vol. 1, 1960, Page H4. [Also at KevinChant.com])
Literature/Schematics (3) Mingay's Radio Electrical Weekly Price Service (REWPS) (Aug 1959 to Aug 1962.)
