451U

451U; Herofon / Herophon (ID = 574075) Radio
451U; Herofon / Herophon (ID = 1802323) Radio 451U; Herofon / Herophon (ID = 724355) Radio
451U; Herofon / Herophon (ID = 1802324) Radio 451U; Herofon / Herophon (ID = 1802325) Radio
451U; Herofon / Herophon (ID = 2496478) Radio 451U; Herofon / Herophon (ID = 2496479) Radio
451U; Herofon / Herophon (ID = 2496480) Radio
Use red slider bar for more.

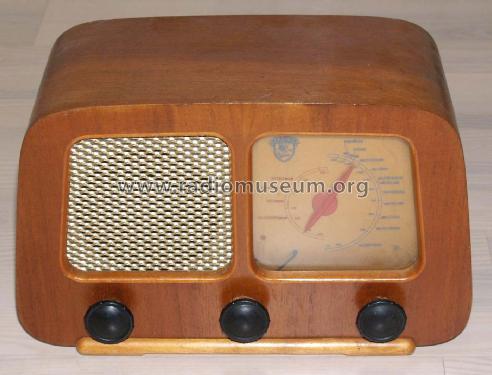

451U; Herofon / Herophon (ID = 1802323) Radio
Herofon / Herophon: 451U [Radio] ID = 1802323 1400x1138
Select picture or schematic to display from thumbnails on the right and click for download.
For model 451U, Herofon / Herophon (brand of Hede Nielsen)

Country:  Denmark
Manufacturer / Brand:  Herofon / Herophon (brand of Hede Nielsen)
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH42 UBF80 UL41 UY41
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 451U - Herofon / Herophon brand of
Notes 2 Wavebands. Option to fit 110v auto transformer internaly, for AC operation only.
Source of data -- Schematic

Model page created by Keith Staines. See "Data change" for further contributors.
