452U

452U; Herofon / Herophon (ID = 574058) Radio 452U; Herofon / Herophon (ID = 574063) Radio
452U; Herofon / Herophon (ID = 574060) Radio 452U; Herofon / Herophon (ID = 574059) Radio

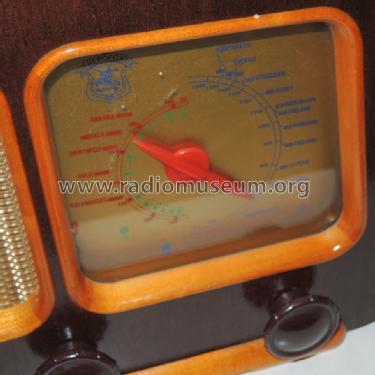

452U; Herofon / Herophon (ID = 1627505) Radio 452U; Herofon / Herophon (ID = 1627506) Radio
Use red slider bar for more.

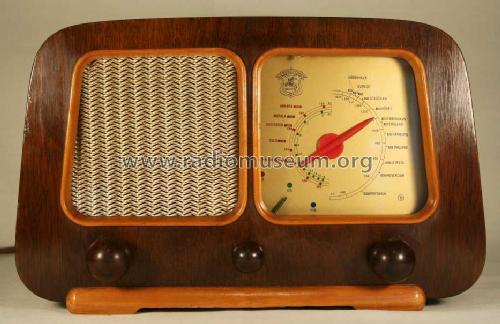

452U; Herofon / Herophon (ID = 574058) Radio
Herofon / Herophon: 452U [Radio] ID = 574058 933x605
Select picture or schematic to display from thumbnails on the right and click for download.
For model 452U, Herofon / Herophon (brand of Hede Nielsen)

Country:  Denmark
Manufacturer / Brand:  Herofon / Herophon (brand of Hede Nielsen)
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1952 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH42 UBF80 UL41 UY41
schematic requested
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: 452U - Herofon / Herophon brand of
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12.5 x 8 x 7 inch / 318 x 203 x 178 mm
Source of data - - Data from my own collection

Model page created by Keith Staines. See "Data change" for further contributors.
