PBX 85

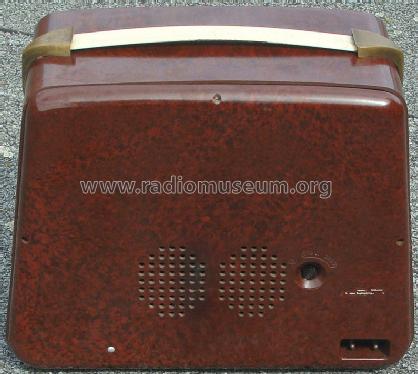

PBX 85; Herofon / Herophon (ID = 1454957) Radio PBX 85; Herofon / Herophon (ID = 1454958) Radio
PBX 85; Herofon / Herophon (ID = 1454959) Radio
Use red slider bar for more.

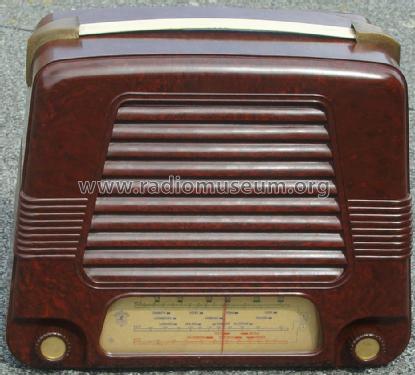

PBX 85; Herofon / Herophon (ID = 1454957) Radio
Herofon / Herophon: PBX 85 [Radio] ID = 1454957 933x842
Select picture or schematic to display from thumbnails on the right and click for download.
For model PBX 85, Herofon / Herophon (brand of Hede Nielsen)

Country:  Denmark
Manufacturer / Brand:  Herofon / Herophon (brand of Hede Nielsen)
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK91 DAF41 DAF41 DLL101
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 110; 220/ 90 & 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: PBX 85 - Herofon / Herophon brand of
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 330 x 150 mm / 10.8 x 13 x 5.9 inch

Model page created by Karl Josef Hahn. See "Data change" for further contributors.
