Petite FM-FA

Petite FM-FA; Herofon / Herophon (ID = 97104) Radio Petite FM-FA; Herofon / Herophon (ID = 97107) Radio
Petite FM-FA; Herofon / Herophon (ID = 97106) Radio Petite FM-FA; Herofon / Herophon (ID = 97105) Radio
Petite FM-FA; Herofon / Herophon (ID = 1175989) Radio Petite FM-FA; Herofon / Herophon (ID = 1175990) Radio
Petite FM-FA; Herofon / Herophon (ID = 1175992) Radio
Use red slider bar for more.
Petite FM-FA; Herofon / Herophon (ID = 97104) Radio
Herofon / Herophon: Petite FM-FA [Radio] ID = 97104 800x597
Select picture or schematic to display from thumbnails on the right and click for download.
For model Petite FM-FA, Herofon / Herophon (brand of Hede Nielsen):
Ebay Vk. johndee4 Art.Nr.5749931337

Country:  Denmark
Manufacturer / Brand:  Herofon / Herophon (brand of Hede Nielsen)
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1955/1956 ? Category: Broadcast Receiver - or past WW2 Tuner

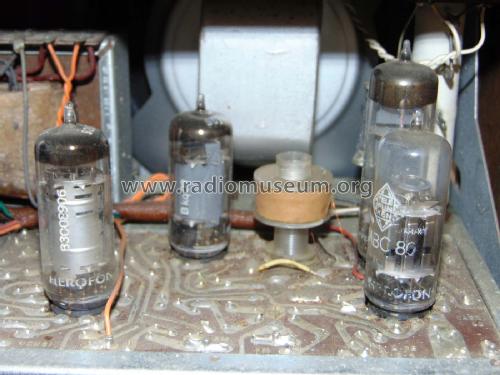

Valves / Tubes 5: UCC85 UCH81 UF89 UABC80 UL84
Main principle Superheterodyne (common)

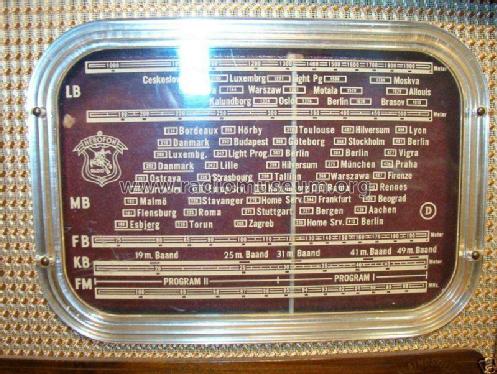

Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Petite FM-FA - Herofon / Herophon brand of
Material Wooden case

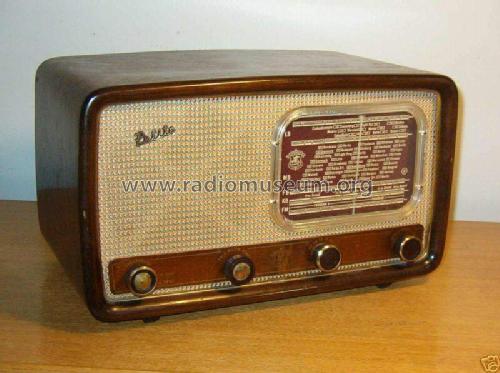

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 370 x 220 x 210 mm / 14.6 x 8.7 x 8.3 inch
Notes FB: range 75 to 190 meters for maritime services (fishery band).
See also Herofon Petite FM-FO for 220 V supply.
Collectors' prices

Model page created by Wolfgang Lill. See "Data change" for further contributors.
