Petite EG-AM

Petite EG-AM ; Herofon / Herophon (ID = 2098374) Radio Petite EG-AM ; Herofon / Herophon (ID = 2098375) Radio

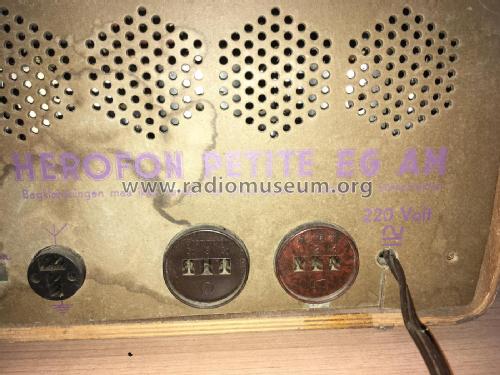

Petite EG-AM ; Herofon / Herophon (ID = 2098376) Radio
Use red slider bar for more.
Petite EG-AM ; Herofon / Herophon (ID = 2098374) Radio
Herofon / Herophon: Petite EG-AM [Radio] ID = 2098374 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Petite EG-AM, Herofon / Herophon (brand of Hede Nielsen):
Image taken from polish online auction portal .allegro.pl. Auction number: 6719880152

Country:  Denmark
Manufacturer / Brand:  Herofon / Herophon (brand of Hede Nielsen)
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UAF42 UAF42 UL41
Semiconductors (the count is only for transistors) Selen
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 220; 235; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Petite EG-AM - Herofon / Herophon brand of
Material Wooden case
Shape Tablemodel, low profile (big size).

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
