Petite FM-EJ Serie A-58

Petite FM-EJ Serie A-58; Herofon / Herophon (ID = 450768) Radio

Petite FM-EJ Serie A-58; Herofon / Herophon (ID = 450769) Radio

Petite FM-EJ Serie A-58; Herofon / Herophon (ID = 1599457) Radio

Petite FM-EJ Serie A-58; Herofon / Herophon (ID = 1859096) Radio

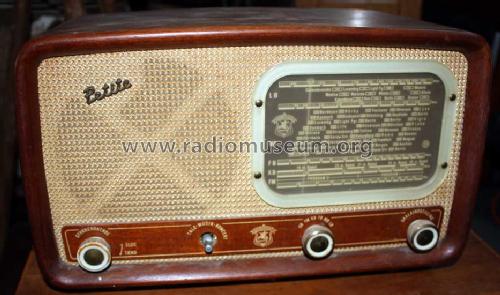

Petite FM-EJ Serie A-58; Herofon / Herophon (ID = 2384081) Radio Petite FM-EJ Serie A-58; Herofon / Herophon (ID = 603794) Radio
Petite FM-EJ Serie A-58; Herofon / Herophon (ID = 603795) Radio
Use red slider bar for more.
Petite FM-EJ Serie A-58; Herofon / Herophon (ID = 2384081) Radio
Herofon / Herophon: Petite FM-EJ Serie A-58 [Radio] ID = 2384081 1400x905
Select picture or schematic to display from thumbnails on the right and click for download.
For model Petite FM-EJ Serie A-58, Herofon / Herophon (brand of Hede Nielsen)

Country:  Denmark
Manufacturer / Brand:  Herofon / Herophon (brand of Hede Nielsen)
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UM80 UL84
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Petite FM-EJ Serie A-58 - Herofon / Herophon brand of
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 370 x 210 x 210 mm / 14.6 x 8.3 x 8.3 inch
Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Literature/Schematics (1) -- Schematic

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.



All listed radios etc. from Herofon / Herophon (brand of Hede Nielsen)
Here you find 50 models, 42 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
