Record FM EH

Record FM EH; Herofon / Herophon (ID = 556956) Radio Record FM EH; Herofon / Herophon (ID = 556957) Radio
Record FM EH; Herofon / Herophon (ID = 556959) Radio
Use red slider bar for more.

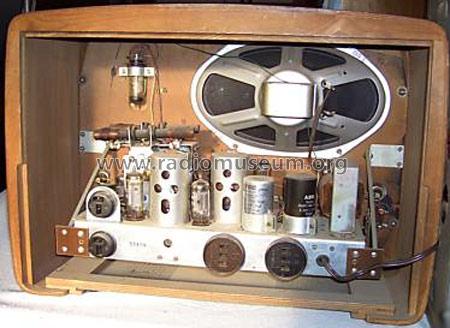

Record FM EH; Herofon / Herophon (ID = 556956) Radio
Herofon / Herophon: Record FM EH [Radio] ID = 556956 450x329
Select picture or schematic to display from thumbnails on the right and click for download.
For model Record FM EH, Herofon / Herophon (brand of Hede Nielsen):
Quelle: ebay 260347917818.

Country:  Denmark
Manufacturer / Brand:  Herofon / Herophon (brand of Hede Nielsen)
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Record FM EH - Herofon / Herophon brand of
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Herofon Record FM EH.
Cabinet is similar to Herofon Record FM-FO-2 (ID= 112185).
Source of data -- Collector info (Sammler)

Model page created by Bernhard Nagel. See "Data change" for further contributors.



All listed radios etc. from Herofon / Herophon (brand of Hede Nielsen)
Here you find 50 models, 42 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
